| General Specifications | |
|---|---|
| Item | Specifications |
| Step Accuracy | ¡À5% |
| Temperature Rise | 80¡æ Max |
| Ambient temperature Range | -20¡æ¡«+50¡æ |
| Insulation Resistance | 100M¦¸Min.500V |
| Dielectric Strength | 500V AC 1 Minute |
| Electrical Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Step Angle | Lead Wire | Rated Current | Holding Torque | Rotor Inertia | Detent Torque | Wiring diagram | Outside Drawing | Motor Weight | ||
| £¨ ¡ã£© | £¨A£© | (Kg.cm) | (g.cm2) | (g.cm) | L | L1 | L2 | (Kg) | |||
| 110BYG550B01 | 0.72 | 10 | 5 | 80 | 8.3 | 5 | A | 140 | 52 | 4.5 | |
| 110BYG550B02 | 0.72 | 10 | 5 | 80 | 8.3 | 5 | A | 140 | 35 | 4.5 | |
| 110BYG550C01 | 0.72 | 10 | 5 | 120 | 12 | 6 | A | 170 | 52 | 6.8 | |
| 110BYG550C02 | 0.72 | 10 | 5 | 120 | 12 | 6 | A | 170 | 35 | 6.8 | |
| 110BYG550D01 | 0.72 | 10 | 5 | 160 | 15 | 7 | A | 201 | 52 | 11 | |
| 110BYG550D02 | 0.72 | 10 | 5 | 160 | 15 | 7 | A | 201 | 35 | 11 | |
¡ùNote£ºlisted in the table is only for representative products, accept custom.

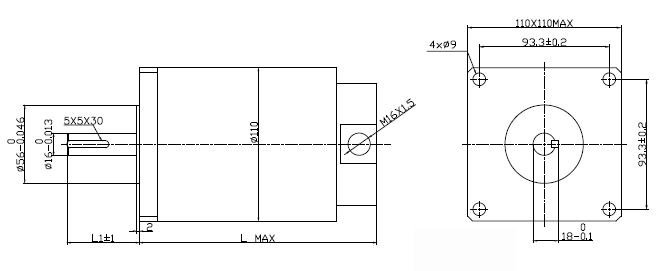

¡ôMechanical Dimensions:

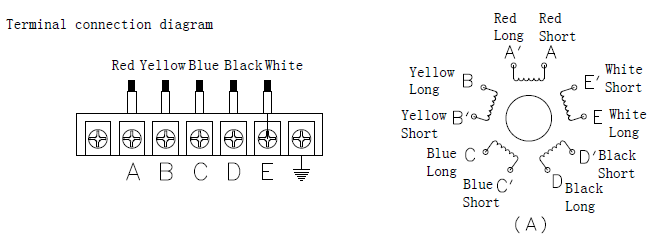

¡ôWiring Diagram:
