| General Specifications | |
|---|---|
| Item | Specifications |
| Step Accuracy | ¡À5% |
| Temperature Rise | 80¡æ Max |
| Ambient temperature Range | -20¡æ¡«+50¡æ |
| Insulation Resistance | 100M¦¸Min.500V |
| Dielectric Strength | 500V AC 1 Minute |
| Electrical Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Step Angle | Lead Wire | Rated Current | Holding Torque | Rotor Inertia | Detent Torque | Wiring diagram | Outside Drawing | Motor Weight | ||
| £¨ ¡ã£© | £¨A£© | (Kg.cm) | (g.cm2) | (g.cm) | L | L1 | L2 | (Kg) | |||
| 86BYGH350A | 1.2 | 3 | 5 | 23 | 1.1 | 1.4 | A | 67 | 30 | 1.65 | |
| 86BYGH350B | 1.2 | 3 | 5 | 42 | 2.3 | 2.1 | A | 97 | 30 | 2.7 | |
| 86BYGH350B/1 | 1.2 | 3 | 5 | 42 | 2.3 | 2.1 | A | 97 | 28 | 2.7 | |
| 86BYGH350C | 1.2 | 3 | 5 | 68 | 3.3 | 2.8 | A | 127 | 30 | 2.7 | |
| 86BYGH350C/1 | 1.2 | 3 | 5 | 68 | 3.3 | 2.8 | A | 127 | 31 | 3.8 | |
¡ùNote£ºlisted in the table is only for representative products, accept custom.

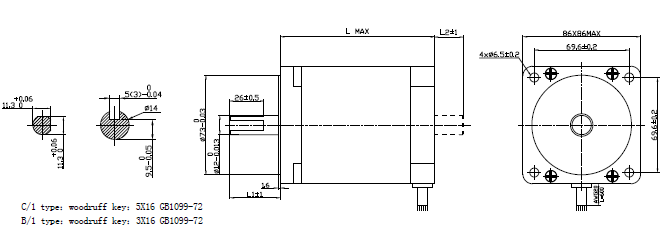

¡ôMechanical Dimensions:

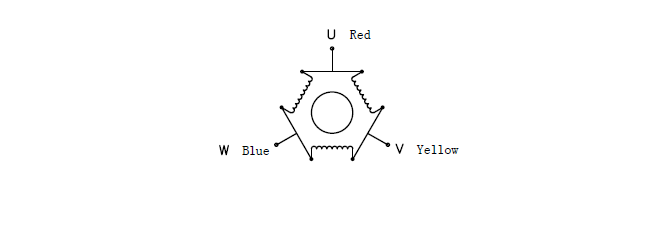

¡ôWiring Diagram:
