| General Specifications | |
|---|---|
| Item | Specifications |
| Step Accuracy | ¡À5% |
| Temperature Rise | 80¡æ Max |
| Ambient temperature Range | -20¡æ¡«+50¡æ |
| Insulation Resistance | 100M¦¸Min.500V |
| Dielectric Strength | 500V AC 1 Minute |
| Electrical Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Step Angle | Lead Wire | Rated Current | Holding Torque | Rotor Inertia | Detent Torque | Wiring diagram | Outside Drawing | Motor Weight | ||
| £¨ ¡ã£© | £¨A£© | (Kg.cm) | (g.cm2) | (g.cm) | L | L1 | L2 | (Kg) | |||
| 86BYG450A01 | 1.8 | 8 | 2.5 | 13 | 0.6 | 0.8 | B | 63 | 30 | 1.6 | |
| 86BYG450A02 | 1.8 | 8 | 1 | 12 | 0.6 | 0.8 | B | 63 | 30 | 1.6 | |
| 86BYG450A03 | 1.8 | 8 | 1.5 | 15 | 0.6 | 0.8 | B | 63 | 30 | 1.6 | |
| 86BYG450A04 | 1.8 | 8 | 2.8 | 15 | 0.6 | 0.8 | B | 63 | 30 | 1.6 | |
| 86BYG450A05 | 1.8 | 4 | 1.5 | 16 | 0.6 | 0.8 | A | 63 | 30 | 1.6 | |
| 86BYG450A06 | 1.8 | 4 | 2 | 19 | 0.6 | 0.8 | A | 63 | 30 | 1.6 | |
| 86BYG450B01 | 1.8 | 8 | 2 | 20 | 1.3 | 1.5 | B | 94 | 30 | 2.6 | |
| 86BYG450B02 | 1.8 | 4 | 2 | 36 | 1.3 | 1.5 | A | 94 | 30 | 2.6 | |
| 86BYG450B03 | 1.8 | 4 | 4 | 41 | 1.3 | 1.5 | A | 94 | 30 | 2.6 | |
| 86BYG450B04 | 1.8 | 4 | 4.5 | 40 | 1.3 | 1.5 | A | 94 | 30 | 2.6 | |
| 86BYGBII | 1.8 | 4 | 5 | 42 | 1.3 | 1.5 | A | 94 | 30 | 2.6 | |
| 86BYG450C01 | 1.8 | 4 | 5 | 50 | 1.9 | 2.5 | A | 134 | 30 | 3.8 | |
| 86BYG450C02 | 1.8 | 8 | 4 | 48 | 1.9 | 2.5 | B | 134 | 30 | 3.8 | |
¡ùNote£ºlisted in the table is only for representative products, accept custom.

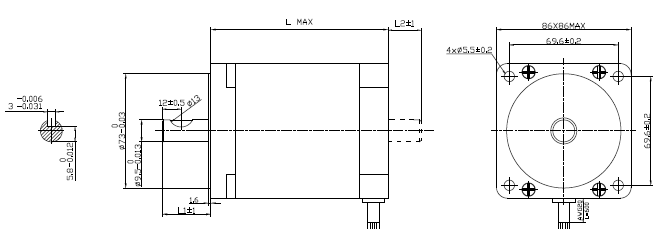

¡ôMechanical Dimensions:

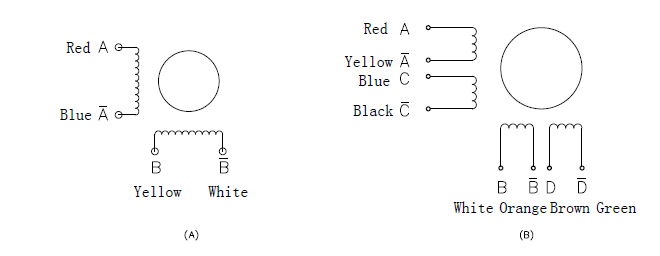

¡ôWiring Diagram:
